Richmond Lock & Weir

Navigating Richmond Lock and Weir

A half-tide lock and rising sluice gates operate at Richmond Lock and Weir to maintain the water level towards Teddington at Low Water.

At the times the weirs are in their operational position, arches 2, 3 and 4 will be closed to navigation, this will be illustrated by the arch closure signs and detailed below.

Located in arch 1, the closest arch to the Middlesex riverbank, starboard side of the river, is a boat roller. This is to be used by all Human-Powered-Vessels to transit.
Located in arch 5, the closest ach to the Surrey riverbank, portside of the river, is a half tide lock. This is to be used by all Power-Driven-Vessels.

The lock is 76m long and 8m wide.

Use of the lock, which has a Lock Foreman on duty 24 hours a day:

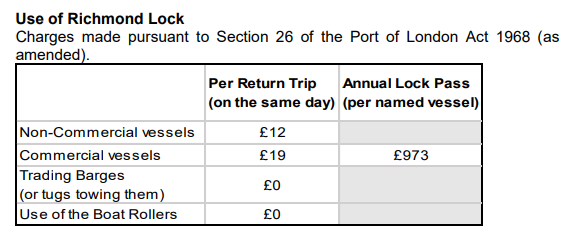

• All recreational vessels regardless of size, draught or displacement will be charged to use Richmond Lock.
• All commercial vessels determined as those vessels holding a certificate to operate commercially, whether they are engaged in commercial activity at the time of transit or not, will be charged to use Richmond Lock.
• For frequent operators an annual lock pass may be obtained per named vessel, per year payable either in full or quarterly as part of a vessel Annual Port Due.

Notes:

1. Return passages on the same day will not be charged in addition.
2. No charges will be levied on vessels which use the boat rollers (recently refitted and safe for use by small vessels).
3. No charges will be levied on trading barges or tugs towing them.

When the sluice gates are down and the weir closed, the following signals are in operation:

• By Day - 3 red discs in the form of an inverted triangle shown at each arch.
• By Night - An inverted triangle of 3 red lights at each arch.

In addition an illuminated sign on the upper end of lock entrance reads ‘Weirs are closed please use Lock’. The lock or boat rollers must be used in these circumstances by the appropriate vessels.

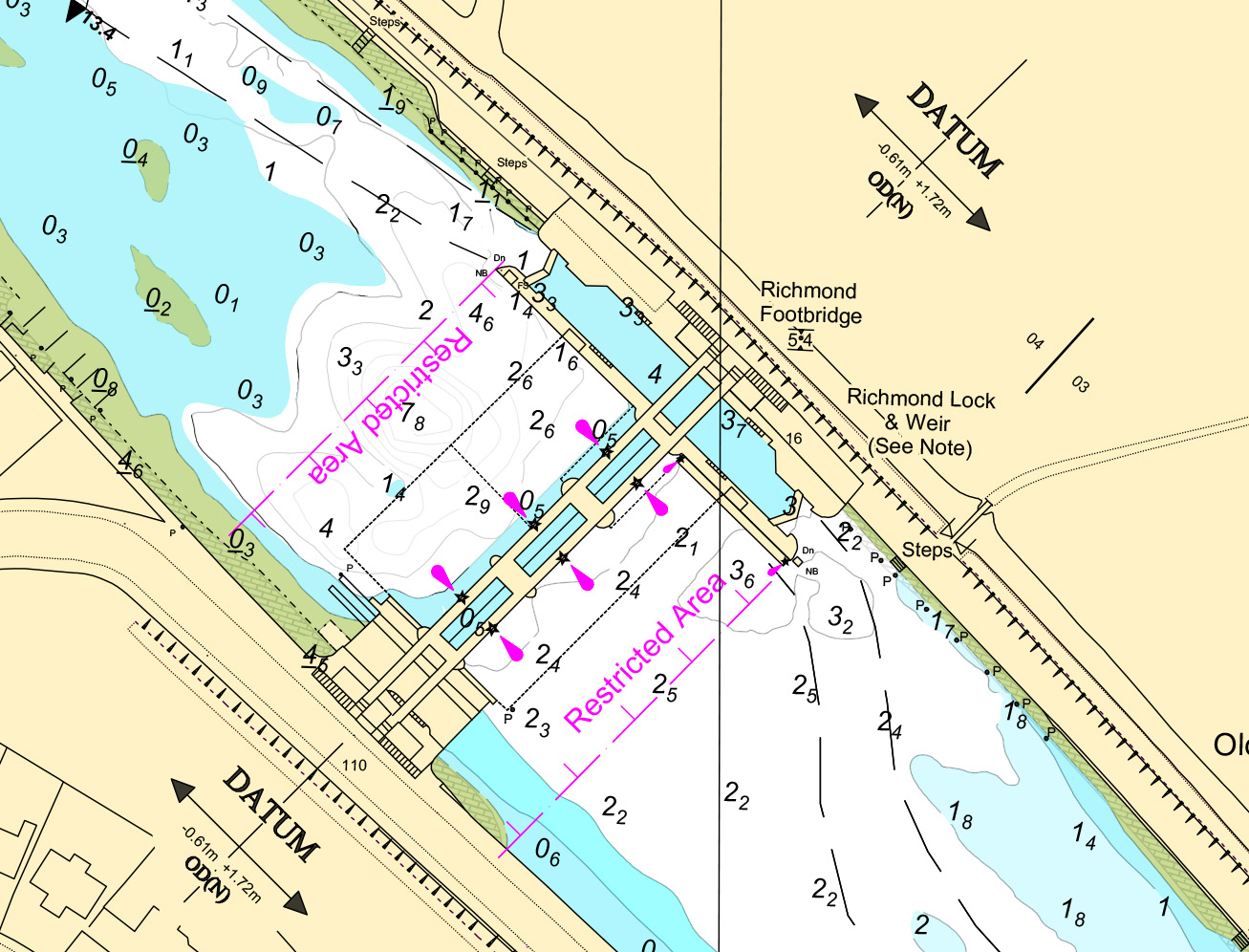

An exclusion zone is established from the extremities of the Lock islands in a line across the river to the Middlesex shore. Mariners should not enter this Exclusion Zone whilst the weirs are in the lowered position or when they are being operated. Only when the weir gates are fully raised and the Closed Arch Signs have been removed is it permitted to navigate into the navigation exclusion zone and through Richmond Footbridge No. 2 or No. 3 arches.

Only those vessels manoeuvring on or to the Lock island berths, vessels engaged in emergency operations or smaller vessels wishing to utilise the boat rollers in No. 1 arch are exempt from this requirement.

For approximately 2 hours either side of high water the weir sluice gates are raised allowing free passage. At these times the following signal is displayed by day and night:

• 2 amber lights shown at each arch - weir open, free navigation.

Mooring trots along the Deer Park bank are expressly for the use of those craft waiting to use the lock. At low water the depth below the weir is restricted and care should be taken when approaching from downstream. The maintained level of water above the weir is 1.72m above OD Newlyn.

Multiple low tide predictions at Richmond Lock & Weir

This phenomenon is not an error but due to the prolonged low water period that exists at Richmond. The prediction programme looks for the turning points in the tidal cycle (i.e. where the tide changes from rising to falling). At Richmond this means that slight variations in the prediction can result in consecutive "low" waters. The multiple low waters have not been edited out of the tide tables so as to illustrate the low water stand that occurs.

Find more information about tides.
